| Model Designation | CPCD50 | CPCD60 | CPCD70 | CPCD80 | CPCD90 | CPCD100 | |
| Load Capacity | kg | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 |
| Load Center | mm | 600 | |||||
| Wheel base | 2400 | 2400 | 2400 | 2400 | 2550 | 2850 | |
| Overall height(overhead guard) | mm | 2450 | 2450 | 2450 | 2510 | 2560 | 2560 |
| Overall length(without fork) | mm | 3550 | 3630 | 3670 | 3800 | 3960 | 4220 |
| Overall width | mm | 2044 | 2044 | 2044 | 2124 | 2164 | 2164 |
| Min.outside turning radius | mm | 3250 | 3300 | 3350 | 3400 | 3630 | 3940 |

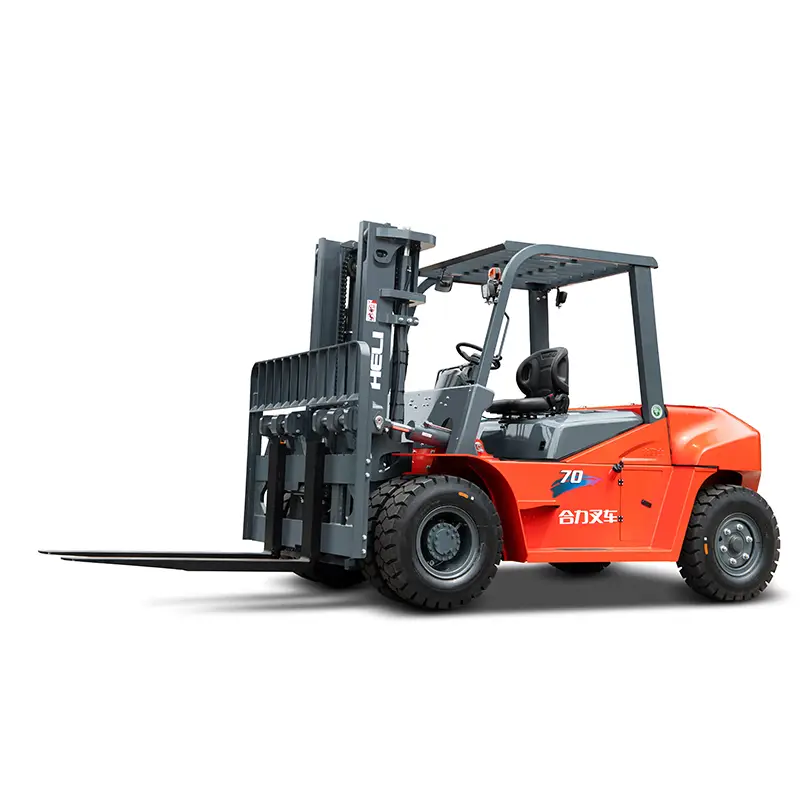

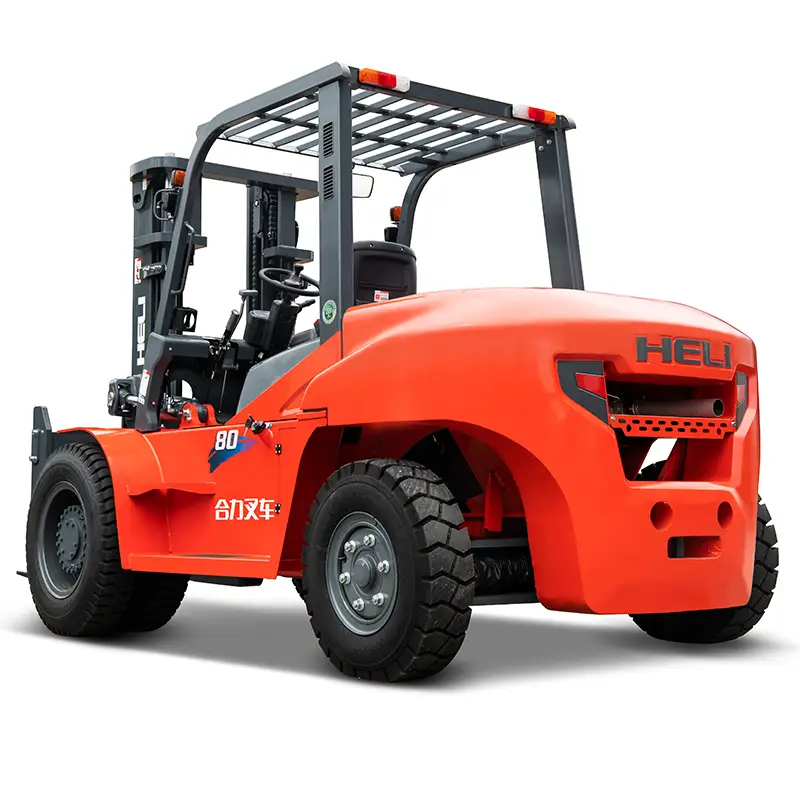

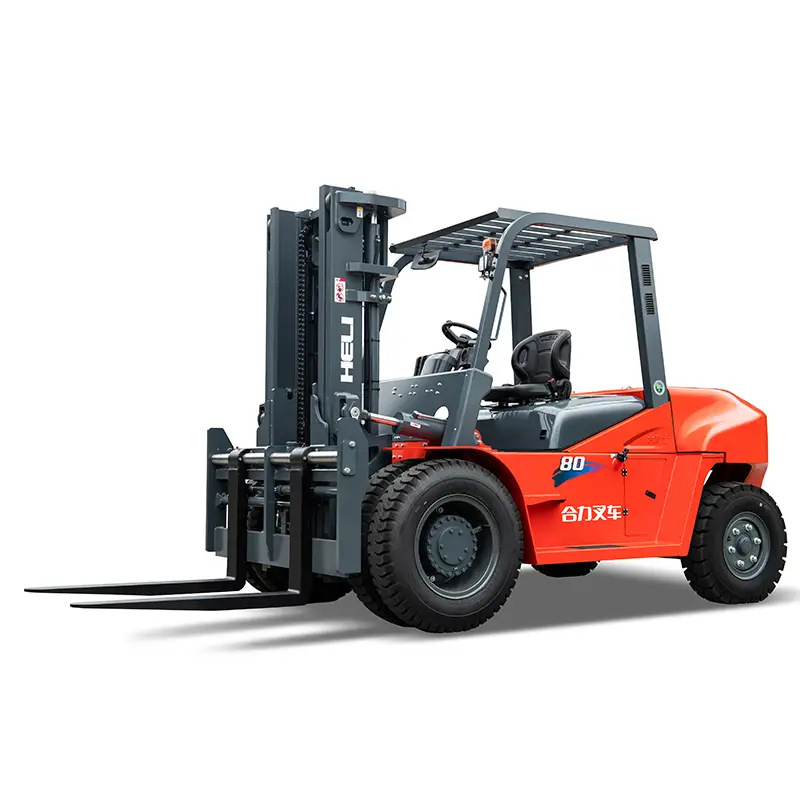

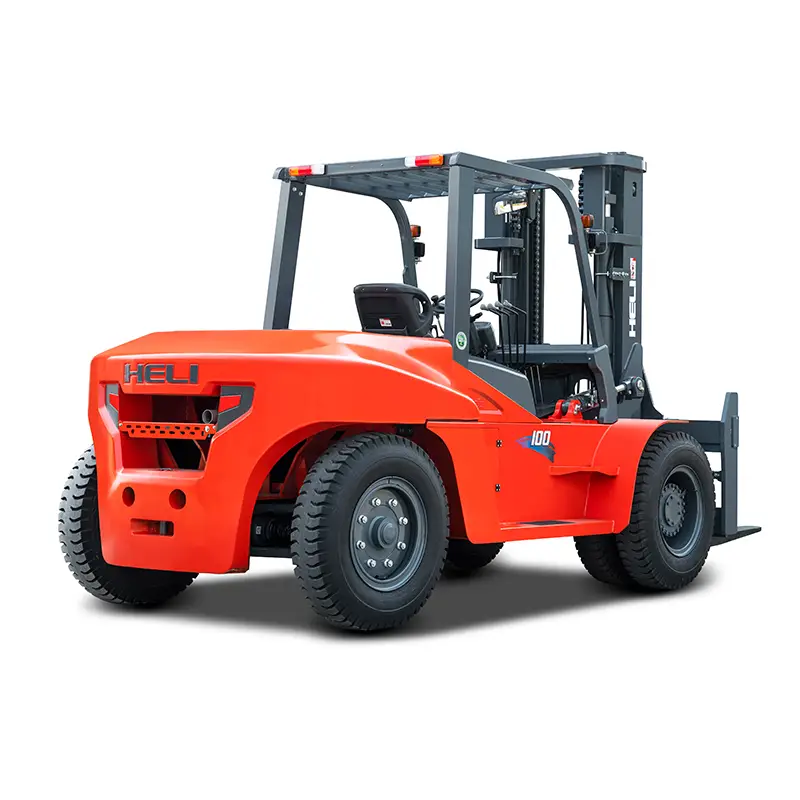

5-10t K2 Series Diesel Forklift Truck
1. Hydraulic power-assisted braking system, braking performance is more stable and reliable；
2. Large LCD CAN bus instrumentation to fully monitor the forklift status；
3. Standard with a full set of LED lamps, energy saving and environmental protection, long service life;
4. Optimized design of double thread locking mechanism, more convenient adjustment;
5. Comprehensively upgraded new intelligent shift system, preventing second gear start.
6. The forklift has abundant power to meet the needs of multi-scenario test.
Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.
Description
1. Hydraulic power-assisted braking system, braking performance is more stable and reliable；
2. Large LCD CAN bus instrumentation to fully monitor the forklift status；
3. Standard with a full set of LED lamps, energy saving and environmental protection, long service life;
4. Optimized design of double thread locking mechanism, more convenient adjustment;
5. Comprehensively upgraded new intelligent shift system, preventing second gear start.
6. The forklift has abundant power to meet the needs of multi-scenario test.
Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.
