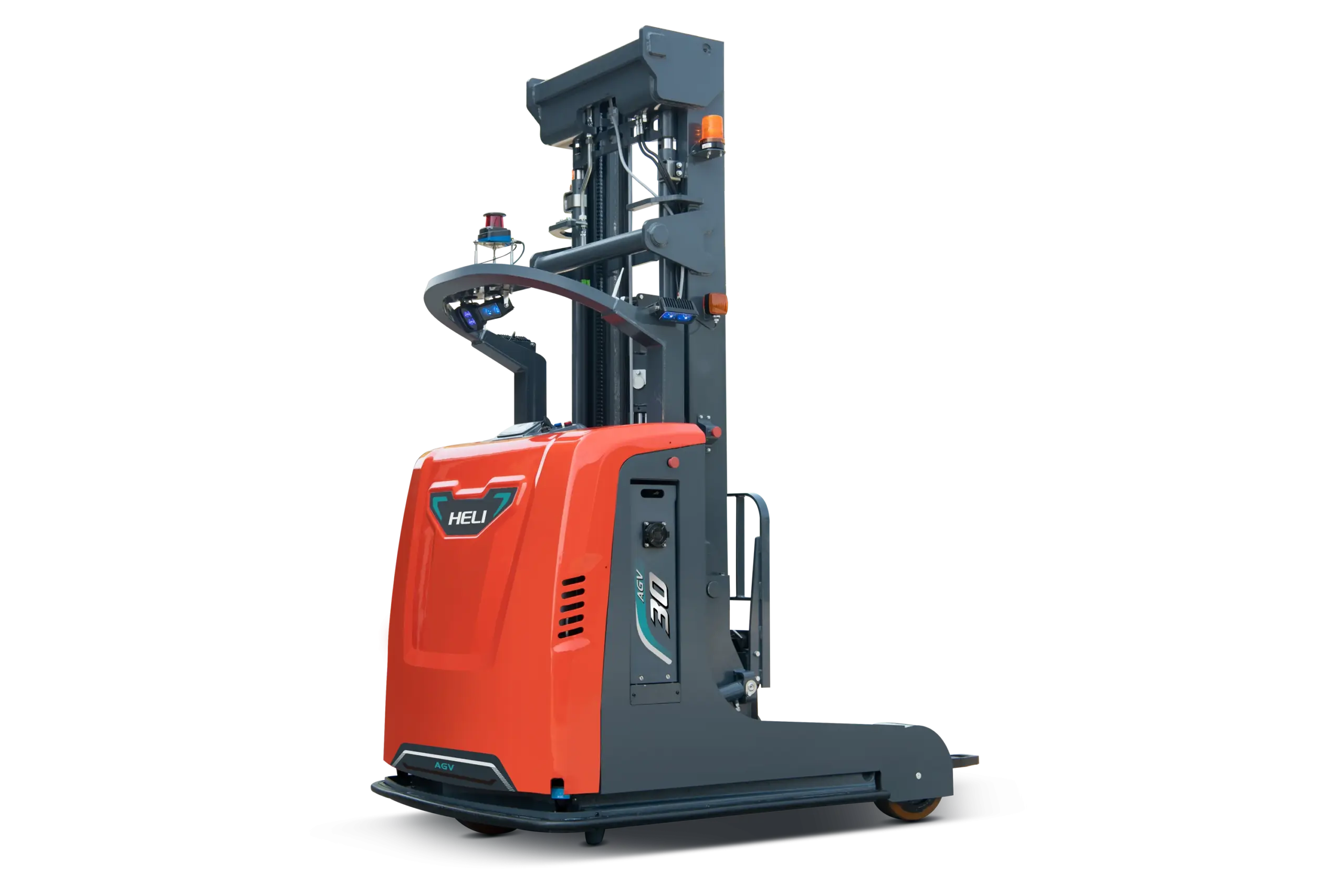

1.6-3 t i-series High-lift storage AGV

Commonly used in factories, e-commerce, logistics centre warehouse materials high storage.
1. The whole vehicle has high mobility and trafficability, and the width of right angle stacking channel is smaller;
2. Equipped with side automatic charging, charging reliability is higher;
3. The innovative designed mast has a good high position loading capacity;
4. AGV Adopts the laser navigation technology, have high positional accuracy.

Model Designation CQD16-AGV1B1LI CQD20-AGV1B1LI CQD25-AGV11CLI CQD30-AGV11CLI
Typology / Reach
Navigation / Laser navigation Laser navigation Laser navigation Laser navigation
Load Capacity kg 1600 2000 2500 3000
Max. lifting height mm 8500 8500 8500 8500
Max. travelling speed km/h 7 7 7 7
Min. turning radius mm 1637 1754 1845 1925
Communication mode / 5G/WIFI 5G/WIFI 5G/WIFI 5G/WIFI
Battery voltage V/Ah 48/202 48/280 80/202 80/280
Weight kg 3820 3846 4400 4660


Description

Commonly used in factories, e-commerce, logistics centre warehouse materials high storage.
1. The whole vehicle has high mobility and trafficability, and the width of right angle stacking channel is smaller;
2. Equipped with side automatic charging, charging reliability is higher;
3. The innovative designed mast has a good high position loading capacity;
4. AGV Adopts the laser navigation technology, have high positional accuracy.
