| Model Designation | CP(C)D10/ CP(Q)(Y)D10 | CP(C)D15/ CP(Q)(Y)D15 | CP(C)D18/ CP(Q)(Y)D18 | CP(C)D20/ CP(Q)(Y)D20 | CP(C)D25/ CP(Q)(Y)D25 | CP(C)D30/ CP(Q)(Y)D30 | CP(C)D35/ CP(Q)(Y)D35 | CP(C)D38/ CP(Q)(Y)D38 | |
| Load Capacity | kg | 1000 | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | 3800 |
| Load Center | mm | 500 | |||||||
| Wheel base | 1450 | 1450 | 1450 | 1650 | 1650 | 1700 | 1700 | 1700 | |
| Overall height(overhead guard) | mm | 2140 | 2140 | 2140 | 2150 | 2150 | 2170 | 2170 | 2170 |
| Overall length(without fork) | mm | 2277 | 2281 | 2299 | 2580 | 2638 | 3818/2748 | 2766 | 2790 |
| Overall width | mm | 1070 | 1070 | 1070 | 1150 | 1150 | 1225 | 1225 | 1225 |
| Min.outside turning radius | mm | 1875 | 1910 | 1930 | 2170 | 2240 | 2400 | 2420 | 2480 |

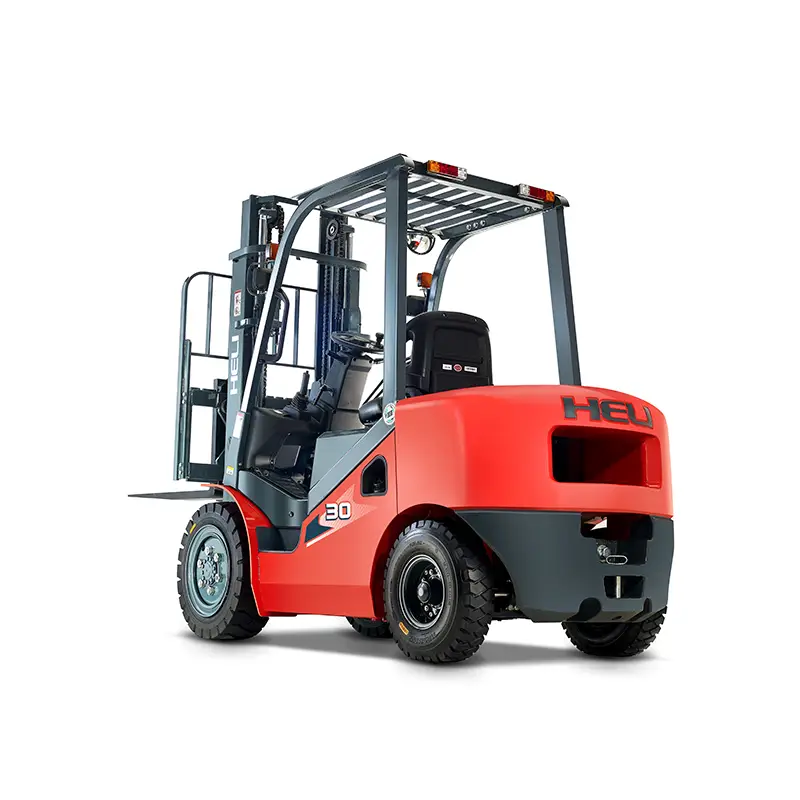

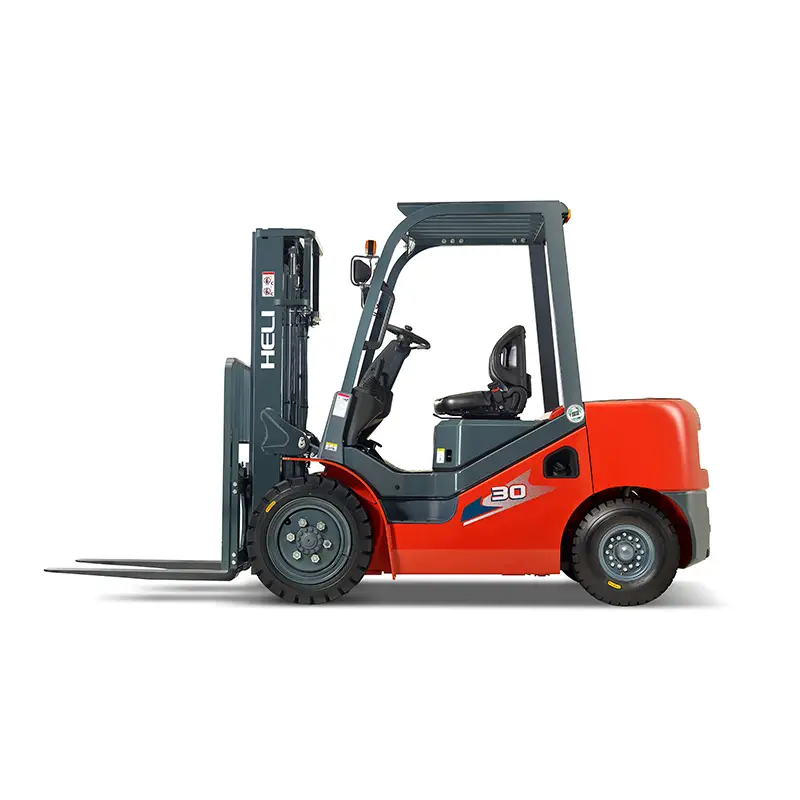

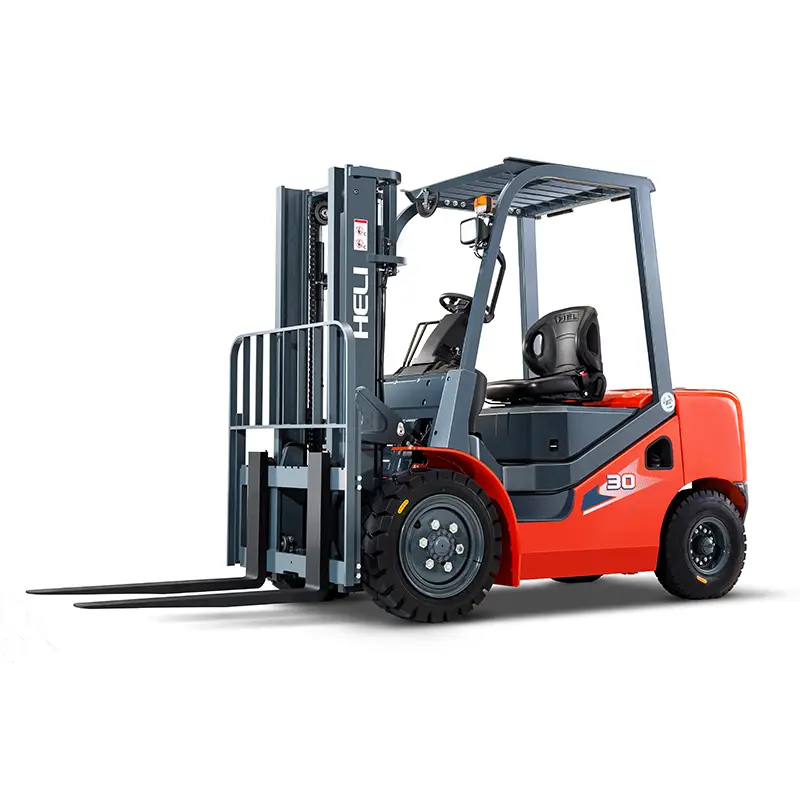

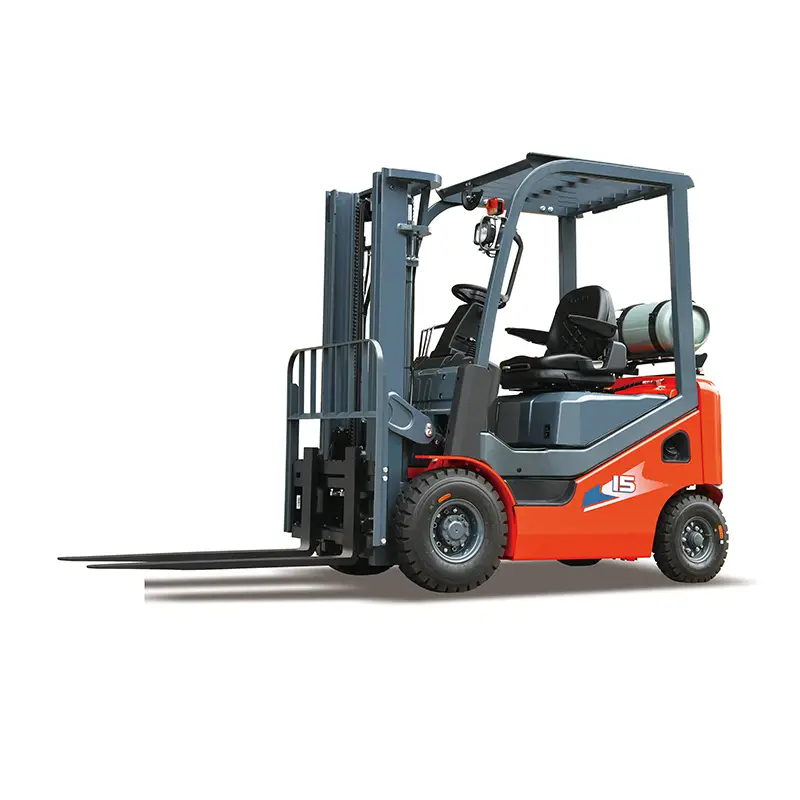

1-3.8t H3 Series Diesel / LPG Forklift Truck
1. Adopting suspended overhead guard to significantly reduce forklift vibration and improve operational comfort;
2. Configuring load sensing hydraulic system to improve work efficiency and reduce vehicle fuel consumption;
3. The core parts like gearbox and drive axle are HELI manufactured, and the key parts are imported, with a low failure rate and reliable quality;
4. Adopts the new generation of cast steering axle from HELI, which has good performance, high reliability, and long service life;
5. Ultra long oil change cycle, with a dust removal mileage over 6000 hours, making it convenient for users.
Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.
Description
1. Adopting suspended overhead guard to significantly reduce forklift vibration and improve operational comfort;
2. Configuring load sensing hydraulic system to improve work efficiency and reduce vehicle fuel consumption;
3. The core parts like gearbox and drive axle are HELI manufactured, and the key parts are imported, with a low failure rate and reliable quality;
4. Adopts the new generation of cast steering axle from HELI, which has good performance, high reliability, and long service life;
5. Ultra long oil change cycle, with a dust removal mileage over 6000 hours, making it convenient for users.
Workplace: Widely used in factories, warehouses, stations, wharves, airports, ports, etc. for loading and unloading of packaged goods, and can also be used for loading and unloading of bulk cargoes and non-packaged cargoes after being equipped with other work attachments.
