| Model Designation | CQD12 | CQD14 | CQD16 | CQD20 | CQD16 | CQD20 | |
| Load Capacity | kg | 1200 | 1400 | 1600 | 2000 | 1600 | 2000 |
| Load Center | mm | 600 | 600 | 600 | 600 | 600 | 600 |
| Max. lifting height | mm | 8500 | 8500 | 8500 | 9500 | 12500 | 12500 |
| Min. outside turning radius | mm | 1625 | 1689 | 1689 | 1751 | 1689 | 1901 |
| Battery Voltage | V | 48/80 | 48/80 | 48/80 | 48/80 | 80 | 80 |
| Controller | ZAPI | ZAPI | ZAPI | ZAPI | ZAPI | ZAPI | |
| Battery | Lithium battery | Lithium battery | |||||
| Other | Optional: Lead-acid battery | Optional: Lead-acid battery | Optional: Lead-acid battery | Optional: Lead-acid battery | Heavy-duty type | ||

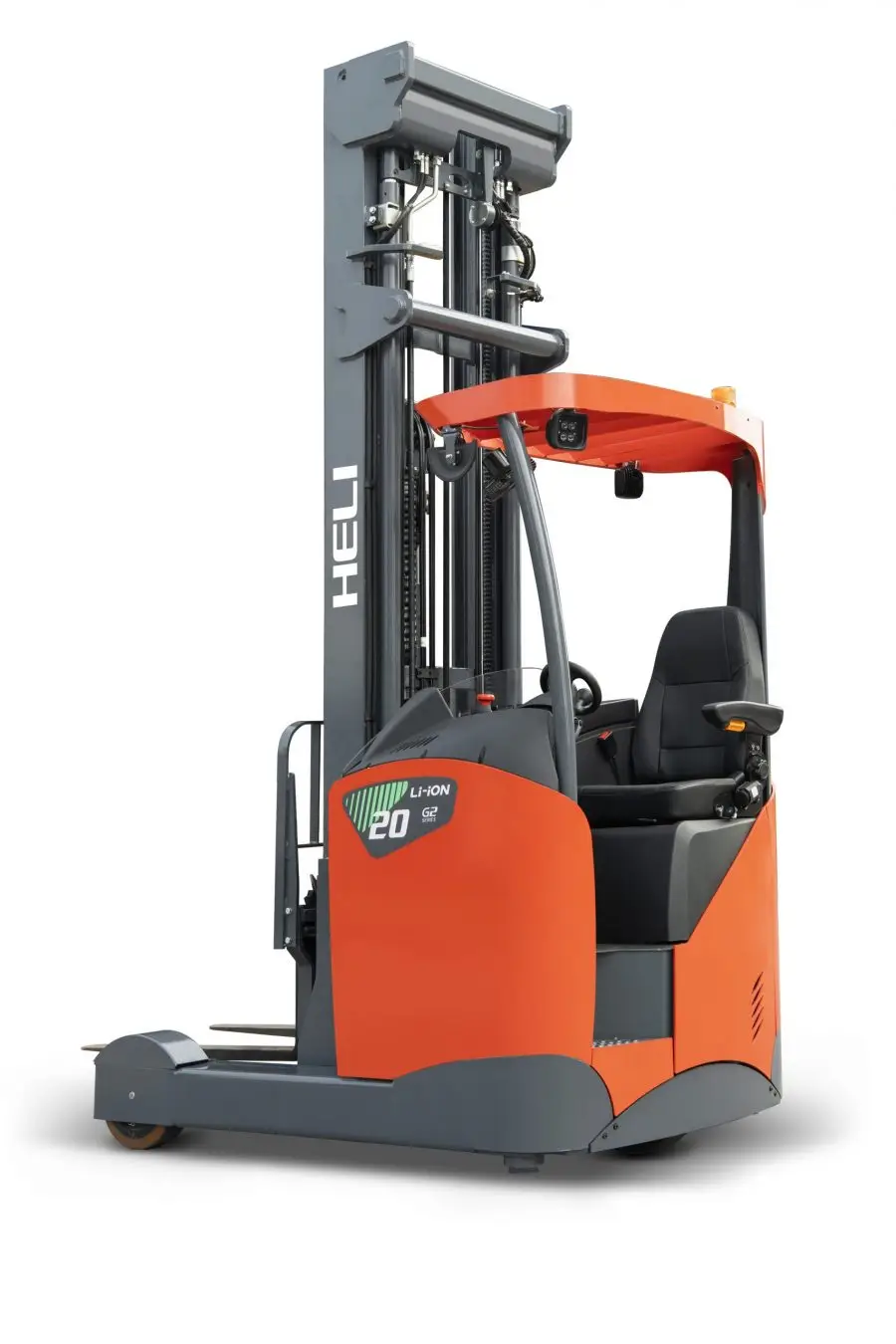

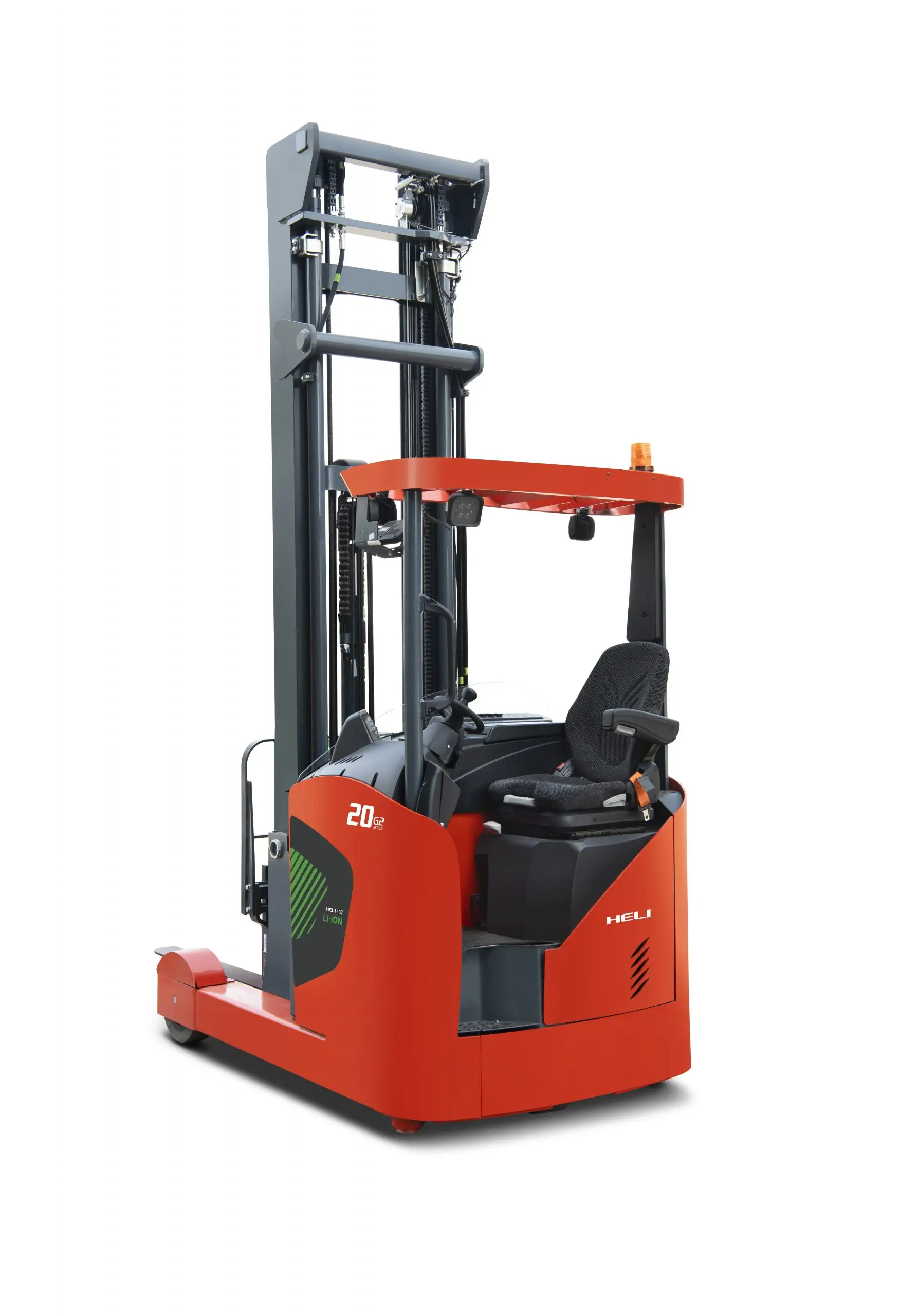

1.2-2t G2 Series Sit-down Type Reach Truck
1. Appearance innovation design: continuing the characteristics of serialization and familialization.
2. Optimization of loading capacity at high space and mast lifting height.
3. Intelligent control system of high level mast to improve the stability of high level operation.
4. The front and rear moving speed of the mast is improved, which enhances the operation efficiency.
5. Comply with the new CE standard, forklift safety is improved.
6. Adopting thumb switch and electro-magnetic proportional control technology, improving operation comfort and improving control precision.
7. Adopting split design for covering parts, improving driving comfort and maintainability.
Description
1. Appearance innovation design: continuing the characteristics of serialization and familialization.
2. Optimization of loading capacity at high space and mast lifting height.
3. Intelligent control system of high level mast to improve the stability of high level operation.
4. The front and rear moving speed of the mast is improved, which enhances the operation efficiency.
5. Comply with the new CE standard, forklift safety is improved.
6. Adopting thumb switch and electro-magnetic proportional control technology, improving operation comfort and improving control precision.
7. Adopting split design for covering parts, improving driving comfort and maintainability.
